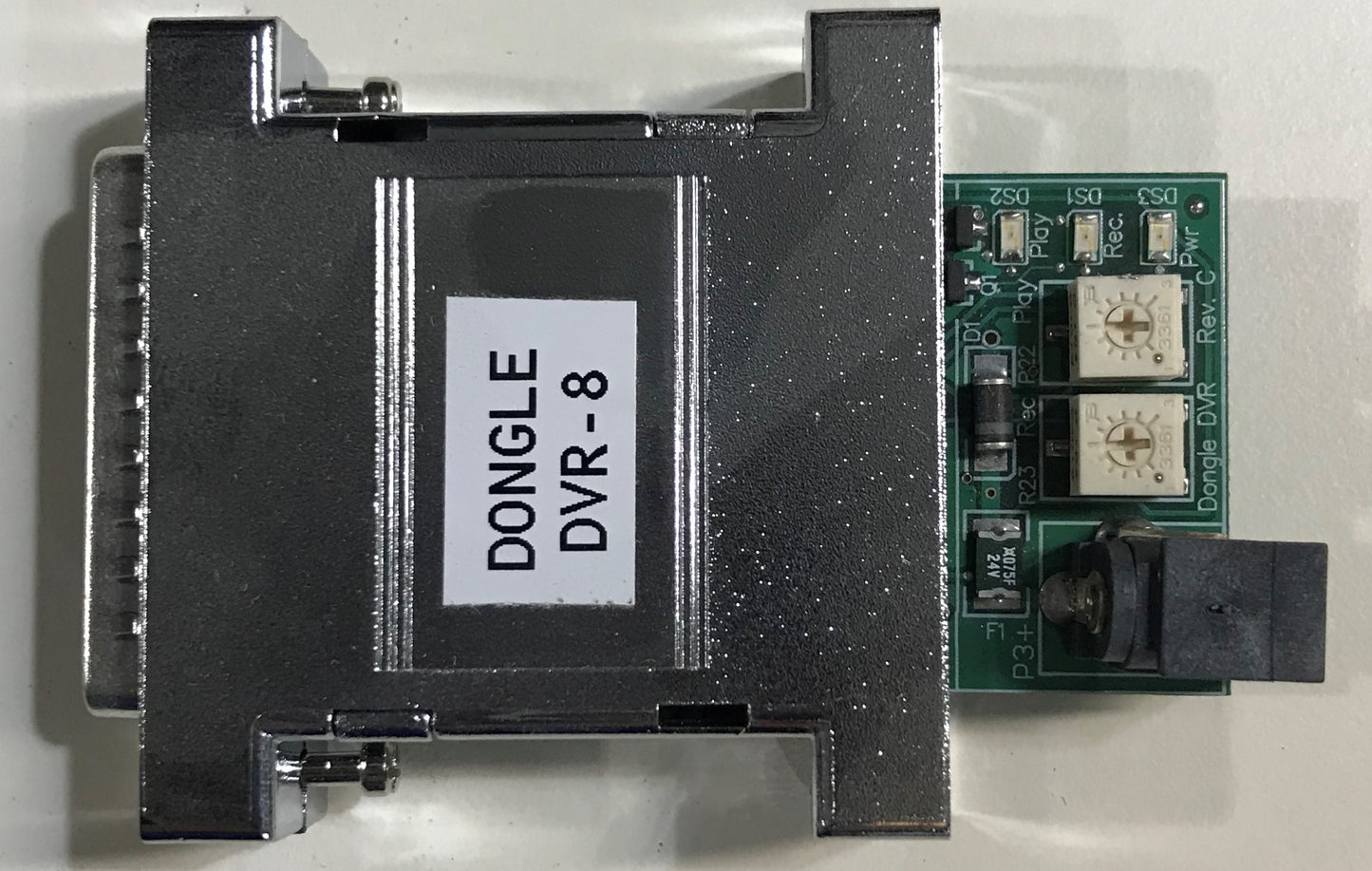

8 Minute Dongle DVR

Introducing the Dongle DVR digital voice recording system for many of the RLC repeater controller family. The module can be interfaced with the RLC-2/2a, RLC-3, RLC-Club, RLC-Club Deluxe and the RLC-Club Deluxe II controllers. This module provides a method of recording and non-volatile storing of voice prompts and messages.


The Dongle DVR can be ordered in two configurations:
   • 8 Minutes total record time - Audio roll-off at 3.4 KHz
   • 16 minutes total record time - Audio roll-off at 1.7 KHz

The Dongle DVR emulates the RLC-DVR1 digital voice recorder with the following exceptions.
   • No Public mail is supported
   • No Private mail is supported
   • Only 91 general message slots
   • No RS-232 port for uploading data files

NOTE: 16-Minute DVR has half of the audio bandwidth of the 8-Minute DVR - therefore twice the record time
16-Minute DVR has less high frequency audio response versus 8-Minute DVR
If interested in better audio quality over record time = 8-Minute DVR
